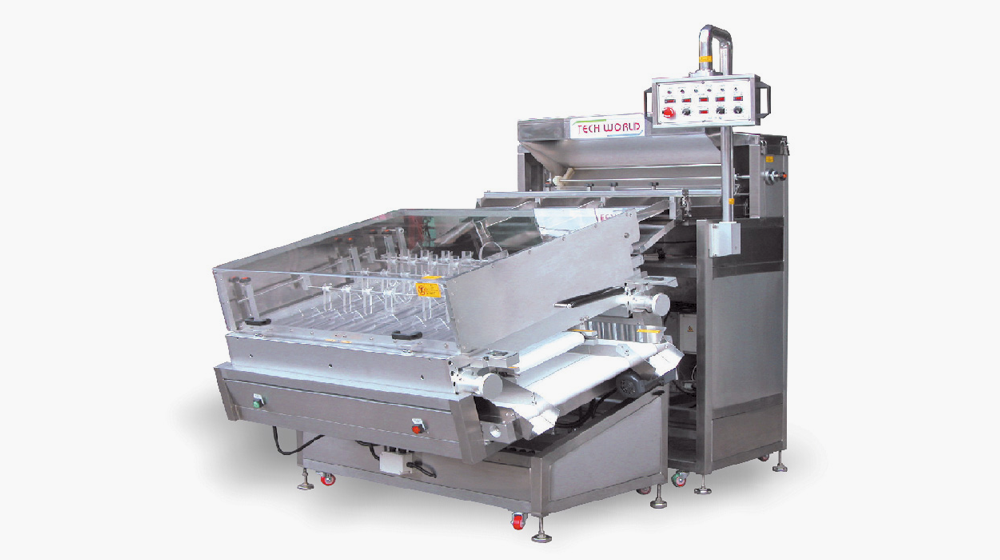

Sorting Machine

Technical Data

Model TW-M4 TW-M8 TW-M12
Functions Automatic, mechanical sorting according to diameter
Product Pharmaceutical industry Soft gelatine capsule (round, oblong) etc.
Option coated tablets, tablets (round and odlong-shaped)
Sorting By DIAMETER DIASORT system
Sorting Precision ±0.1mm DIAMETER
+0.05mm THICKNESS
Sorting Limit Size 0-24mm
Weight 380kg 580kg 690kg
Electrical
Capacity approx.80,000~260,000 products/hour
(depending on from and dimentions)		 approx.160,000~530,000 products/hour
(depending on from and dimentions)		 approx.240,000~800,000 products/hour
(depending on from and dimentions)
Dimension 1,620(W)x710(L)x1,600(H) 1,620 (W) ×1,250 (L) 1,600 (H) 1,620(W)x1,670(L)x1,600(H)

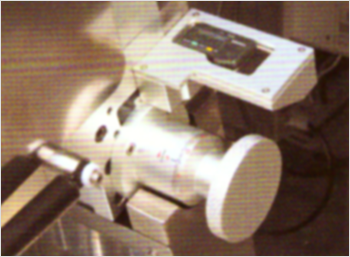

  • Knob adjustment of thickness tolerances
    with LED Digital Indication

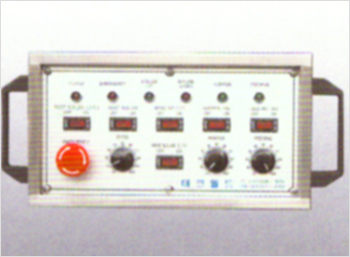

  • Control Panel
