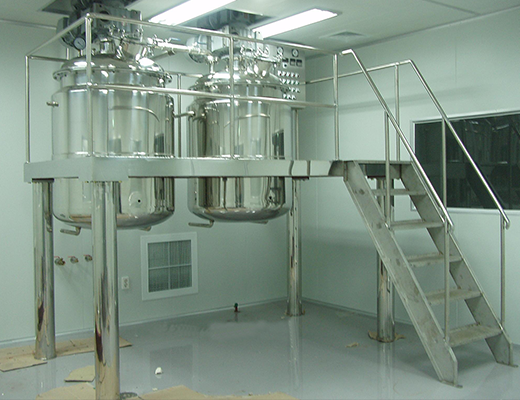

GELATIN MELTING TANK
| Specification | |
|---|---|
| Dimension | 3,000(L) x 1,600XW) x 3,500(H) |
| Main Motor | 5HP X 1/43 x 2EA |
| Vacuum Pump | 5HP X 1EA |
| Maximum Capacity | 600L |
| Maximum Rate | 40RPM (Fixed) |
| Maximum Temperature | 90C-100 C |
| Heater | 5kw x 4EA |
| Voltage | 220V, 380V, 415V, 440V |
| Frequency | 50 or 60 Hz |
| Power | Approx-35 kw |
| Weight | Approx - 1,800 kg |

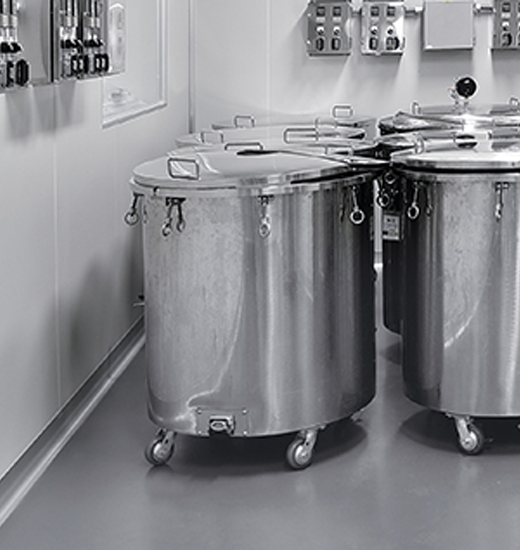

GELATIN SERVICE TANK
| Specification | |
|---|---|
| Dimension | Ø680(Diameter) x 1,100(H) |
| Temperature Control | Integrated Sensor |
| Maximum Temperature | 60 °C -80 °C |
| Maximum Capacity | 200L |
| Frequency | 50 or 60 Hz |
| Voltage | 220V, 380V, 415V, 440V |
| Heater | 3 kw x 1EA |
| Power | Approx - 3 kw |
| Weight | Approx - 130 kg |
MEDICINE SERVICE TANK
| Specification | |
|---|---|
| Dimension | Ø680(Diameter) x 1,100(H) |
| Temperature Control | Integrated Sensor |
| Maximum Temperature | 60 °C - 70 °C |
| Maximum Capacity | 300L |
| Frequency | 50 or 60 Hz |
| Voltage | 220V, 380V, 415V, 440V |
| Heater | 3 kw X 1EA |
| Power | Approx - 3 kw |
| Weight | Approx - 120 kg |

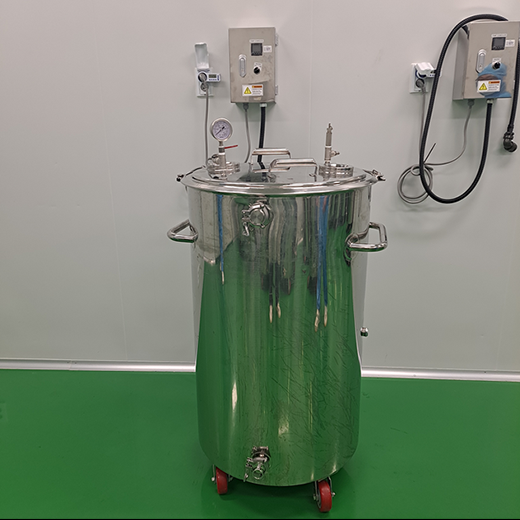

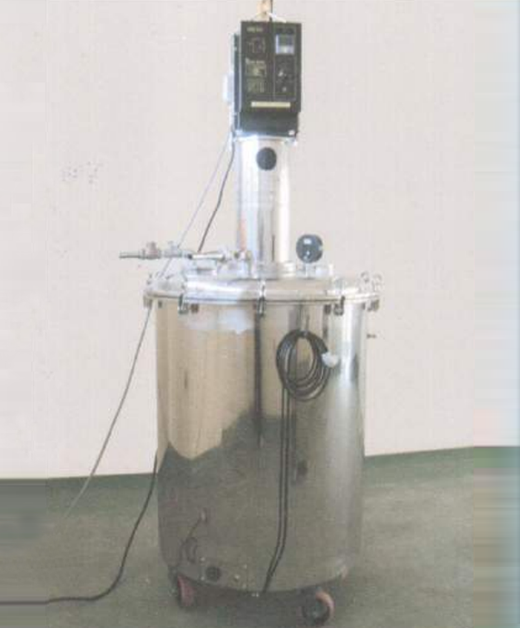

MEDICINE VACUUM MIXER
| Specification | |
|---|---|
| Dimension | Ø800(Diameter) x 1,460(H |
| Main Motor | D.C. 3HP X 1EA |
| Maximum Speed | 1,700RPM |
| Vacuum Pump Motor | 1HP X 1EA |
| Frequency | 50 or 60 Hz |
| Voltage | 220V, 380V, 415V, 440V |
| Power | Approx - 2,5 kw |
| Weight | Approx - 65 kg |

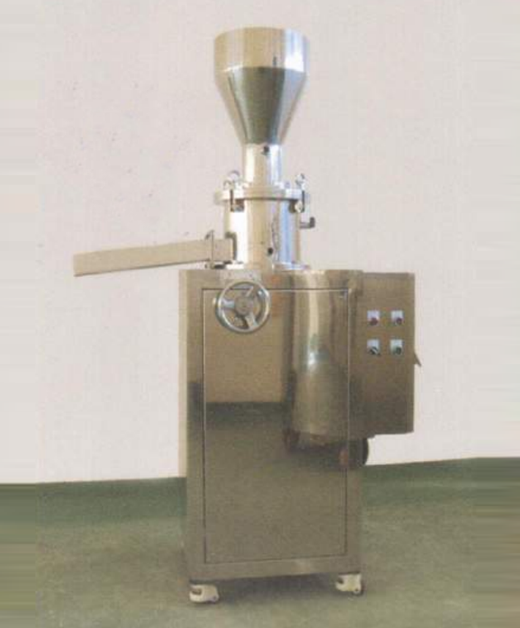

COLLOID MILL
| Specification | |
|---|---|
| Dimension | 550(L) x 750(W) x 1,700(H) |
| Main Motor | 15HP X 1EA (Horizontal) |
| Maximum Speed | 3,500RPM |
| Maximum Capacity | 100L-700L |
| Frequency | 50 or 60 Hz |
| Voltage | 220V, 380V, 415V, 440V |
| Material | SUS-316,304 |
| Power | Approx - 12 kw |
| Weight | Approx - 400 kg |

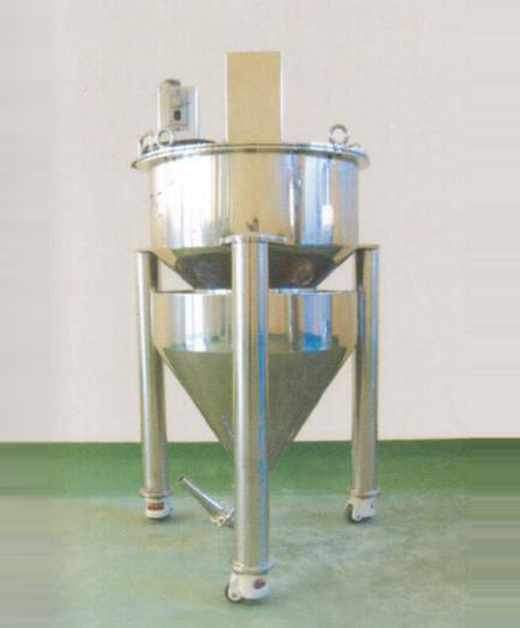

VIBRATOR
| Specification | |
|---|---|
| Dimension | Ø640(Diameter) x 1,050(H) |
| Main Motor | 1/2HP X 1EA |
| Voltage | 220V, 380V, 415V, 440V |
| Maximum Capacity | 200L |
| Frequency | 50 or 60 Hz |
| Type of Meshes | #60 and #80 |
| Weight | Approx - 50 kg |

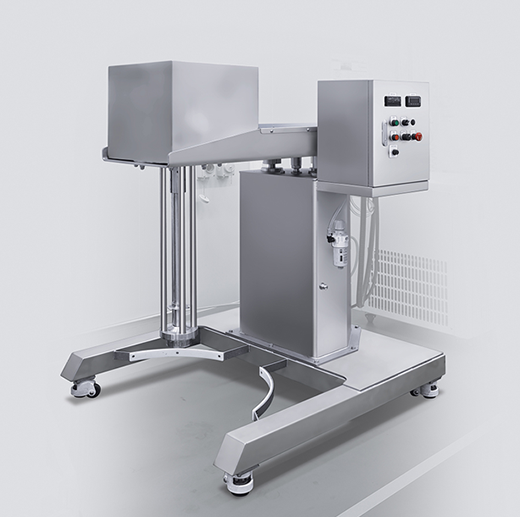

HOMO MIXER
| Specification | |
|---|---|
| Dimension | 1,610(L) x 800(W) x 1,700(H |
| Main Motor | 5HP X 1EA (Horizontal) |
| Maximum Speed | 3,500RPM |
| Frequency | 50 or 60 Hz |
| Oil Pump | 2HP X 1EA (Horizontal) |
| Voltage | 220V, 380V, 415V, 440V |
| Power | Approx-7 kw |
| Weight | Approx - 450 kg |
COLOR MIXER
Support parts
-

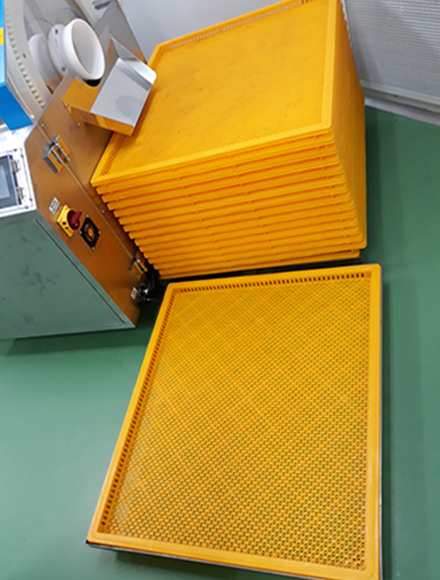

Dry Vat
-

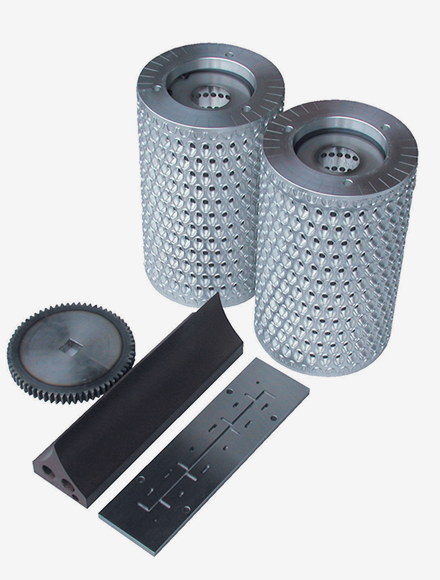

Die Roll
-

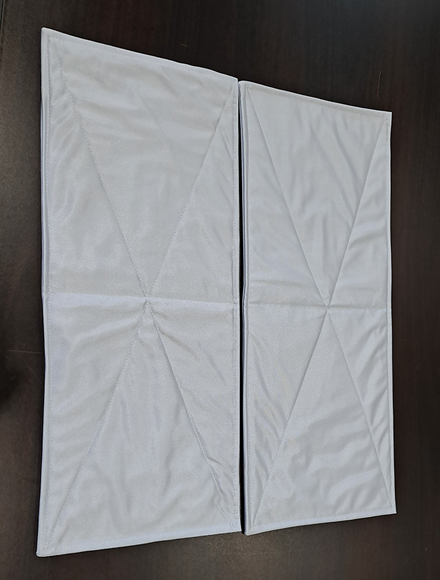

Wiper
